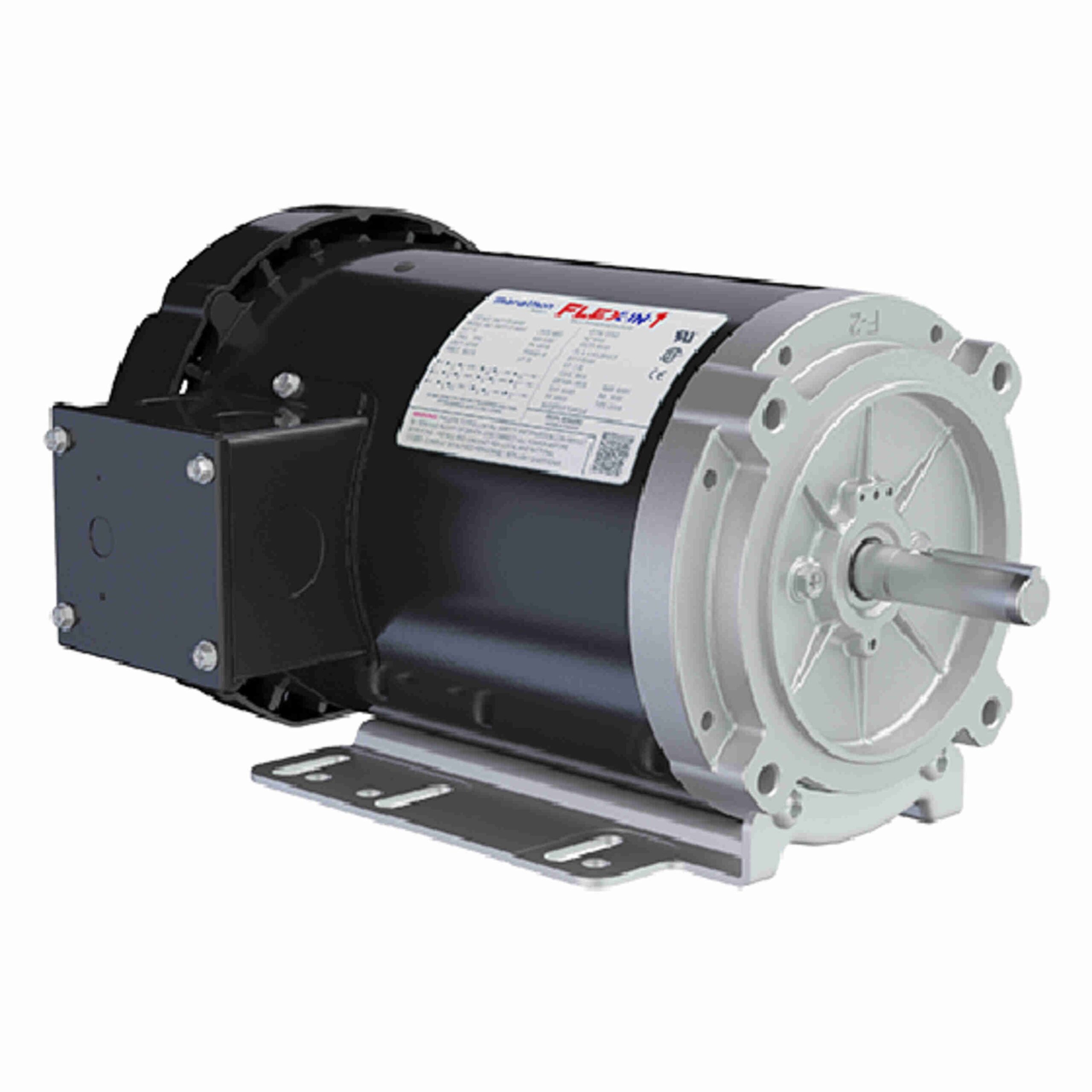

Leeson FX01BK004, 1Hp, 3 Phase

Introducing the Leeson FX01BK004 1 HP 3‑phase FLEX‑IN‑1™ Motor from Lewis Electric Motor — a high-performance, general purpose motor designed to adapt across multiple mounting styles and meet the demands of industrial applications. With a 56HC frame, TEFC enclosure, and inverter‑duty capability, this motor offers flexibility, durability, and efficiency.

Key Features

• 1 HP output for versatile equipment use
• 3‑phase operation for smooth power delivery
• 208‑230/460 V input for wide voltage compatibility
• 56HC frame size, TEFC (Totally Enclosed Fan Cooled) enclosure
• FLEX‑IN‑1™ design replaces up to 18 standard general purpose motors
• Configurable mounting styles (F1, F2, F3) and combination base holes
• Inverter duty rated (10:1 constant torque for TEFC)
• Rolled steel construction, double‑sealed bearings, Class F insulation

Built for general purpose environments such as pumps, fans, blowers, conveyors, and compressors, the FX01BK004 delivers a one‑motor solution to simplify inventory and installation.
